180° Elbow Aluminium Joiner

Over 400 different shapes and sizes

Product Range / Shop

102mm  4
102mm  4
** images for illustration purposes only.

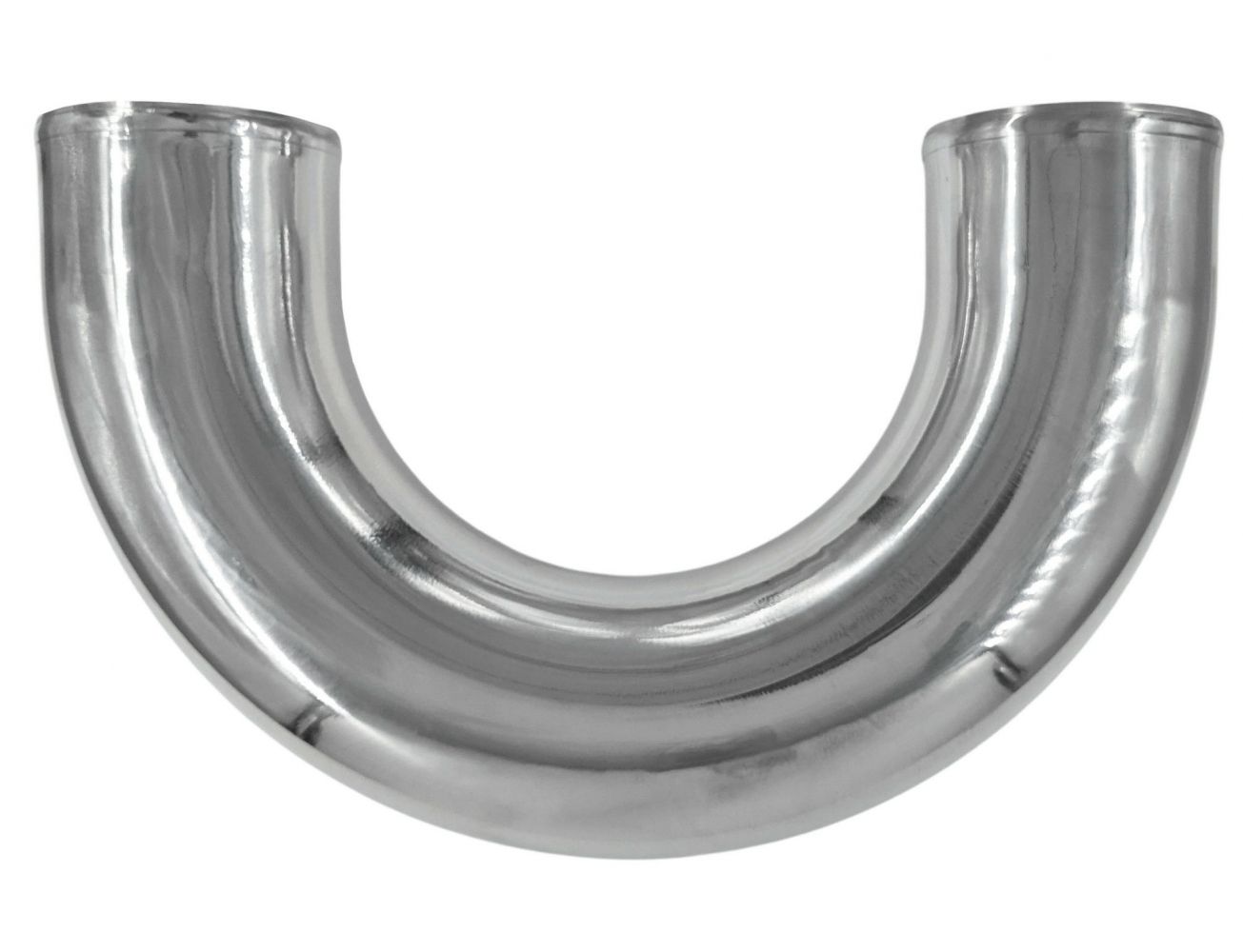

102mm (4") 180° Elbow Aluminium Joiner

Part #HJ-U102

Polished, Beaded, 152mm x 152mm

£48.22 ex VAT

£57.86 inc VAT


Current Selection:

Colour: Polished

Popular Intercooler sizes available
We also offer different degree elbow pipes in all diameters!

We also offer a bespoke or OEM manufacturing service, for induction, intercooler pipes, Coolant etc..We can fabricate aluminium pipes from sample or drawing with brackets, MAF sensors, breathers, Bosses etc... as well as offer several surface finishes such as Polished, Natural, Brushed, Powder coated or painted.

To see our work simply visit us at our next show, or we can show you examples in our show room.

Bespoke pipes are subject to minimum orders.
We do not offer one offs, but can recommend fabricators for this.

Not the size you are looking for? Check out our full range of 180° elbow aluminium pipes here.



Technical Specification
Leg Length - A1 152mm
Centre Line Radius - R 154.4mm
Wall Thickness 2.1mm
Aluminium Grade 6063
Roll Beaded Yes
Outer Diameter - OD1 102mm
All Technical Data

We deliver worldwide via: DHL, FedEx, and Royal Mail.

Express, Next Working Day and Economy delivery options available at the Checkout.

We can guarantee same day dispatch on all orders placed and paid for before midday (12:00PM GMT)

Frequently Asked Questions

Mirror polishing is a more advanced and time-consuming process than standard polishing, but it can create a highly reflective and flawless finish on metal pipes, including aluminium. Here are the general steps involved in mirror polishing pipes:

  • Preparation: Begin by cleaning the pipe thoroughly to remove any dirt or debris. Then, use
    progressively finer grits of sandpaper to remove any scratches, dents, or other imperfections. Start
    with a coarse grit, such as 240, and work up to finer grits, such as 320, 400, 600, 800, 1200, and
    2000. Be sure to sand evenly and in the same direction to create a uniform finish.
  • Buffing: Once the pipe has been sanded, use a buffing wheel or pad and a polishing compound to
    start the mirror polishing process. Apply the polishing compound to the wheel or pad and then run
    the pipe against it at a low speed, working from one end to the other. Repeat this process, gradually
    increasing the speed and pressure until you achieve the desired level of shine.
  • Finishing: Once the pipe has been buffed, use a finer polishing compound to further refine the finish.
    You may also want to use a felt wheel or pad to create a smoother surface. Repeat the buffing
    process, using lighter pressure and a higher speed, until you achieve a mirror-like finish.
  • Final cleaning: Once the mirror polishing is complete, clean the pipe thoroughly to remove any
    residue from the polishing compound. You may want to use a clean cloth or a solvent such as
    acetone to ensure that the surface is completely clean.

Keep in mind that mirror polishing requires a high level of skill and patience, and the process may vary depending on the type of metal and the specific tools and materials you are using.

Roll beading is a process that involves forming a bead or raised ridge around the circumference of an aluminium pipe, typically near the end or edge of the pipe. The purpose of roll beading is to create a secure connection point for hoses or other components, preventing them from slipping off or becoming dislodged. Here are the general steps involved in roll beading aluminium pipes:

  • Cutting: Start by cutting the aluminium pipe to the desired length, using a saw or other cutting tool.
    Make sure that the pipe is straight and free from any burrs or sharp edges.
  • Marking: Use a marker or other tool to mark the location where the bead will be formed. This is
    typically near the end of the pipe, but the exact location may vary depending on the specific
  • Beading: Next, use a roll beading machine or tool to form the bead around the circumference of the
    pipe. The beading tool typically consists of a set of rollers that apply pressure to the pipe, gradually
    forming the desired shape. The size and shape of the bead can be adjusted by changing the position
    of the rollers or using different tool heads.
  • Finishing: Once the bead has been formed, use a deburring tool or sandpaper to smooth out any
    rough edges or burrs that may have been created during the beading process. This will help to
    ensure a secure and tight fit when connecting hoses or other components to the beaded end of the

Roll beading can be done manually using a hand-held beading tool, or with a motorised roll beading machine for larger volumes or higher precision. It is important to follow proper safety precautions when working with aluminium pipes, including wearing gloves and eye protection, to avoid injury.

Carbon fibre pipes and aluminium pipes both have their own advantages and disadvantages. Here are some general advantages and disadvantages of Aluminium Pipes:

  • Advantages of aluminium pipes:
    Lightweight: While not as lightweight as carbon fibre, aluminium is still a relatively lightweight material that is easy to handle and transport.
    Easy to modify: Aluminium is a more malleable material than carbon fibre, which makes it easier to modify, bend or cut to fit specific applications.
    Affordable: Aluminium is generally more affordable than carbon fibre, making aluminium pipes a more cost-effective option.
    High ductility: Aluminium has a high ductility, which means it can deform and bend without breaking.
  • Disadvantages of aluminium pipes:
    Less strong than carbon fibre:Aluminium has a lower strength-to-weight ratio than carbon fibre, which means it may not be as strong or durable.
    Corrosion-prone: Aluminium is prone to some corrosion under certain circumstances, which can weaken the pipe over time.
    Poor thermal conductivity: Aluminium has a higher thermal expansion rate and lower thermal conductivity than carbon fibre, which can make it prone to warping or cracking when exposed to high temperatures.

Ultimately, the choice between carbon fibre and aluminium pipes will depend on the specific application and requirements. Carbon fibre pipes may be preferable for applications that require lightweight and high strength, while aluminium pipes may be more appropriate for applications that require easy modification and affordability.

One of aluminium's outstanding attributes is its low thermal expansion coefficient, meaning it doesn’t expand or contract significantly in response to temperature changes. This stability ensures that structures or parts made of aluminium tubes maintain their form and functionality even under varying weather conditions. This is crucial in applications where dimensional stability is key, such as in aircraft and automobile manufacturing.

  • Additionally, aluminium tubes are excellent heat conductors. They dissipate heat more efficiently than many other materials, including steel. This property is leveraged in heat exchangers in HVAC systems and automotive radiators, where rapid heat transfer is critical.
  • Aluminium tubes also have a natural resistance to corrosion that is not significantly affected by temperature changes. It retains its anti-corrosive properties across a wide temperature range, providing long-lasting durability.
