We stock all internal sizes from 32 to 152mm ID in Blue & Black in Polyester Reinforcement
Red is made to order unless we have stock remaining
204mm and 254mm double hump hoses only available in Blue
Select your reinforcement build material from:
- Polyester - Standard Build (-40°C - 170°C)
- Nomex - High Temp Build (-40°C - 220°C Made To Order)
- Fluoro Lined - Oil and Fuel Resistant Liner (-40°C - 170°C Made To Order)
All hoses are INTERNAL diameter.
Highest quality hand made hoses, lined and multi-layered with quality fabric reinforcements.
- ANY bespoke length, diameter, quantities can be made
Call +44 (0)1952 670 702 or email sales@viper-performance.co.uk for quote.

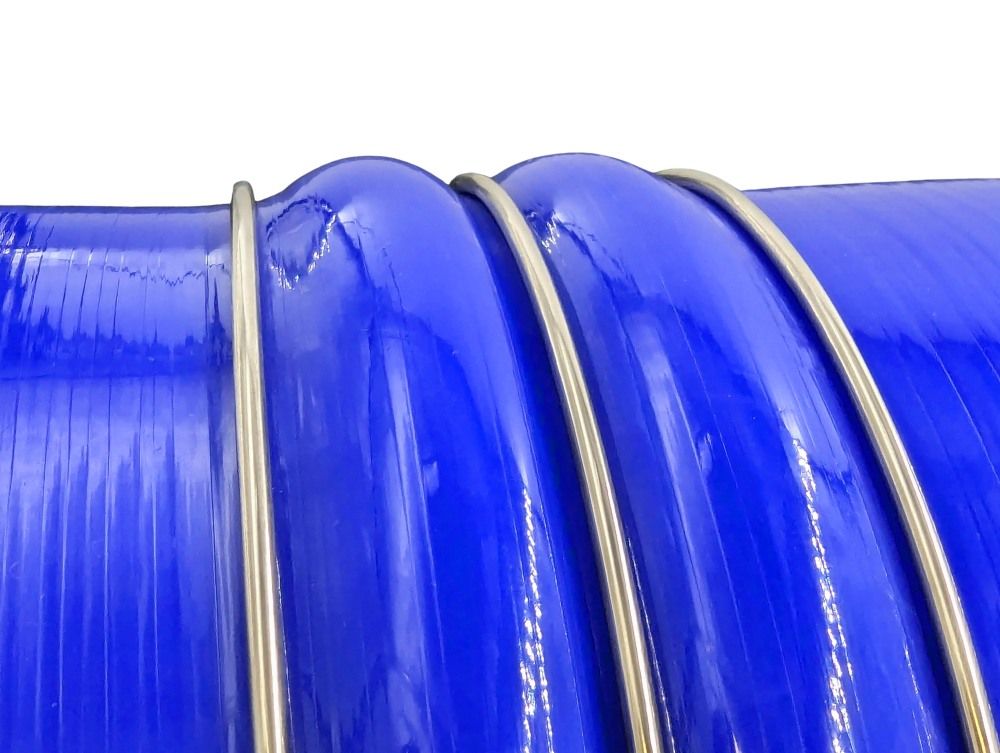

Featuring one or two convolutions (humps),
Specially designed for areas of vibration, where engine movement may cause other hoses to stress and split.
The single centre HUMP convolution acts as a cushion and offers some flexibility and vibration absorption. (hoses from 32 to 102mm ID). Highly recommended for connecting intercoolers, charge air cooler to pipework.

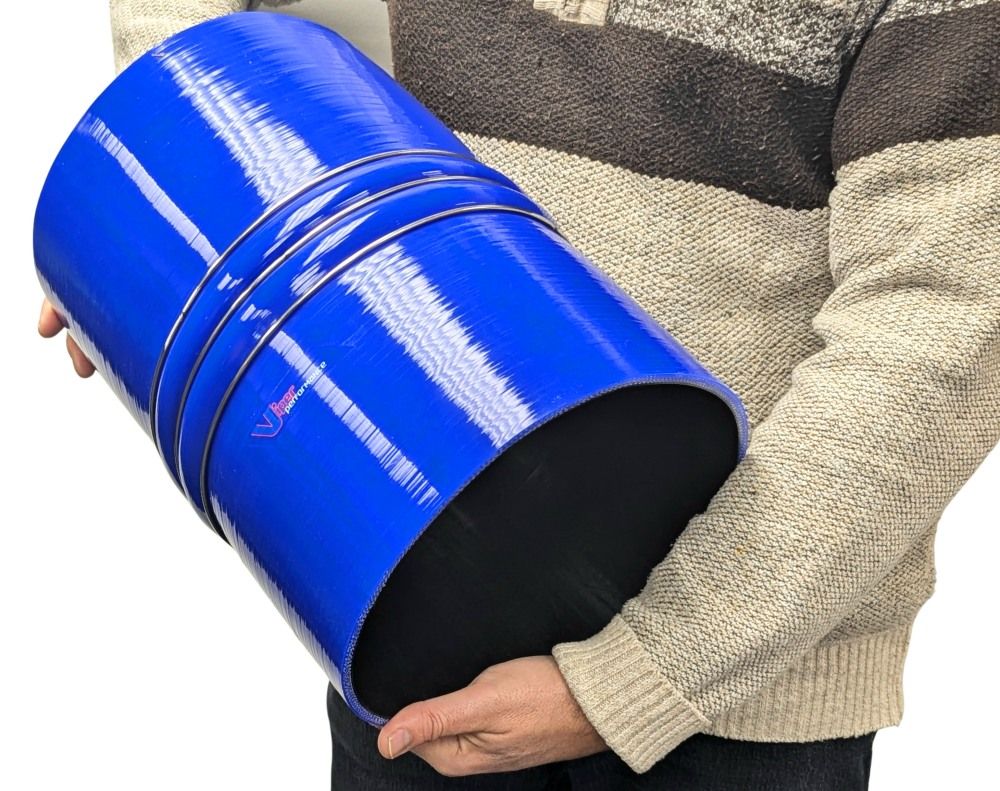

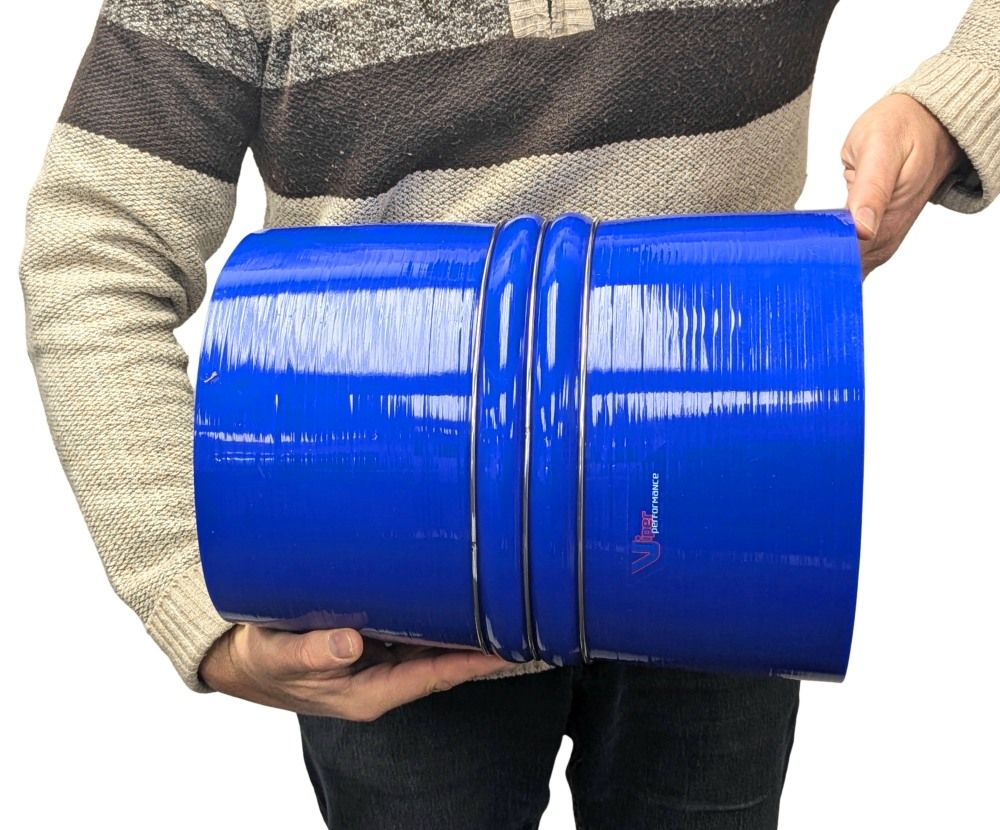

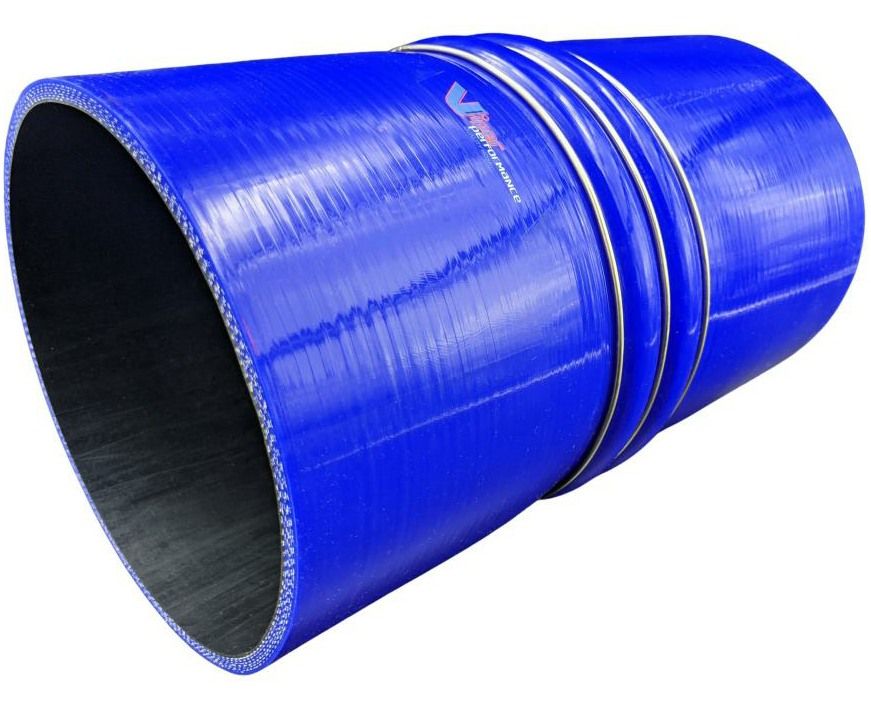

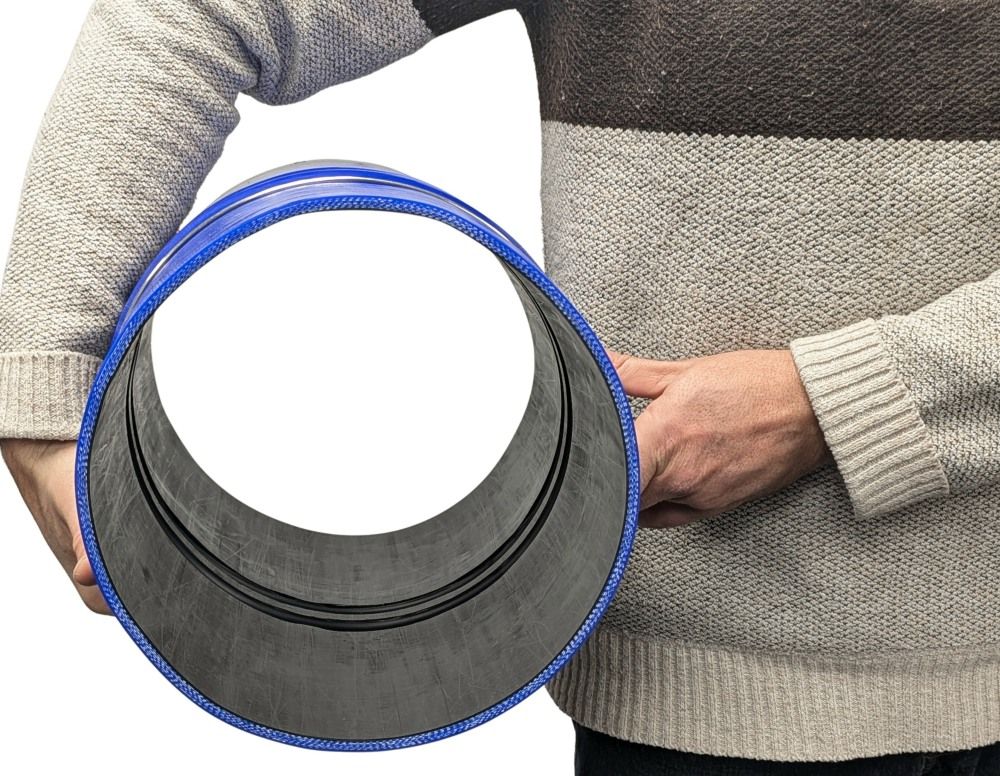

Large bore hoses are also commonly used in the marine industry as Marine Hoses. We also stock very large heavy duty marine grade hump hoses in BLUE only, which are compatible with wet exhaust systems. The marine large hoses have two convolutions (204mm + 254mm ID), a high tensile silicone material and capable of temperature ratings up to 180°C peak. These are also 350mm long.
Looking for a different diameter? Check out our full range of hump hose silicone connector hoses here.
Technical Specification | |
---|---|
Overall Length - L | 350mm |
Internal Diameter - ID1 | 254mm |
Plies of Reinforcement | 6 PLY |
Wall Thickness | 7mm |
