We stock all internal sizes from 6 to 204mm ID in Blue & Black in Polyester Reinforcement
Red is made to order unless we have stock remaining
Select your reinforcement build material from:
- Polyester - Standard Build (-40°C - 170°C)
- Nomex - High Temp Build (-40°C - 220°C Made To Order)
- Fluoro Lined - Oil and Fuel Resistant Liner (-40°C - 170°C Made To Order)
We stock the following sizes with our Fluoro Liner:
8mm 10mm 13mm 16mm 19mm 25mm 32mm 35mm 38mm
All hoses are INTERNAL diameter.
Highest quality hand made hoses, lined and multi-layered with quality fabric reinforcements.
- ANY bespoke length and diameter can be made. Minimum orders apply.
Looking for a different diameter? Check out our full range of 90° silicone hoses here.
Call +44 (0)1952 670 702 or email sales@viper-performance.co.uk for quote.
CENTRELINE BEND RADIUS DATA (CLR)
6mm ID CLR 16mm
8mm ID CLR 16mm
10mm ID CLR 16mm
13mm ID CLR 16mm
16mm ID CLR 18mm
19mm ID CLR 18mm
22mm ID CLR 20mm
25mm ID CLR 30mm
28mm ID CLR 30mm
32mm ID CLR 32mm
35mm ID CLR 35mm
38mm ID CLR 35mm
41mm ID CLR 35mm
44mm ID CLR 40mm
48mm ID CLR 45mm
51mm ID CLR 51mm
54mm ID CLR 60mm
57mm ID CLR 60mm
60mm ID CLR 60mm
63mm ID CLR 63mm
65mm ID CLR 65mm
67mm ID CLR 65mm
70mm ID CLR 65mm
76mm ID CLR 65mm
80mm ID CLR 70mm
83mm ID CLR 70mm
85mm ID CLR 70mm
89mm ID CLR 70mm
95mm ID CLR 70mm
102mm ID CLR 70mm
114mm ID CLR 90mm
127mm ID CLR 90mm
152mm ID CLR 90mm
204mm ID CLR 176.5mm

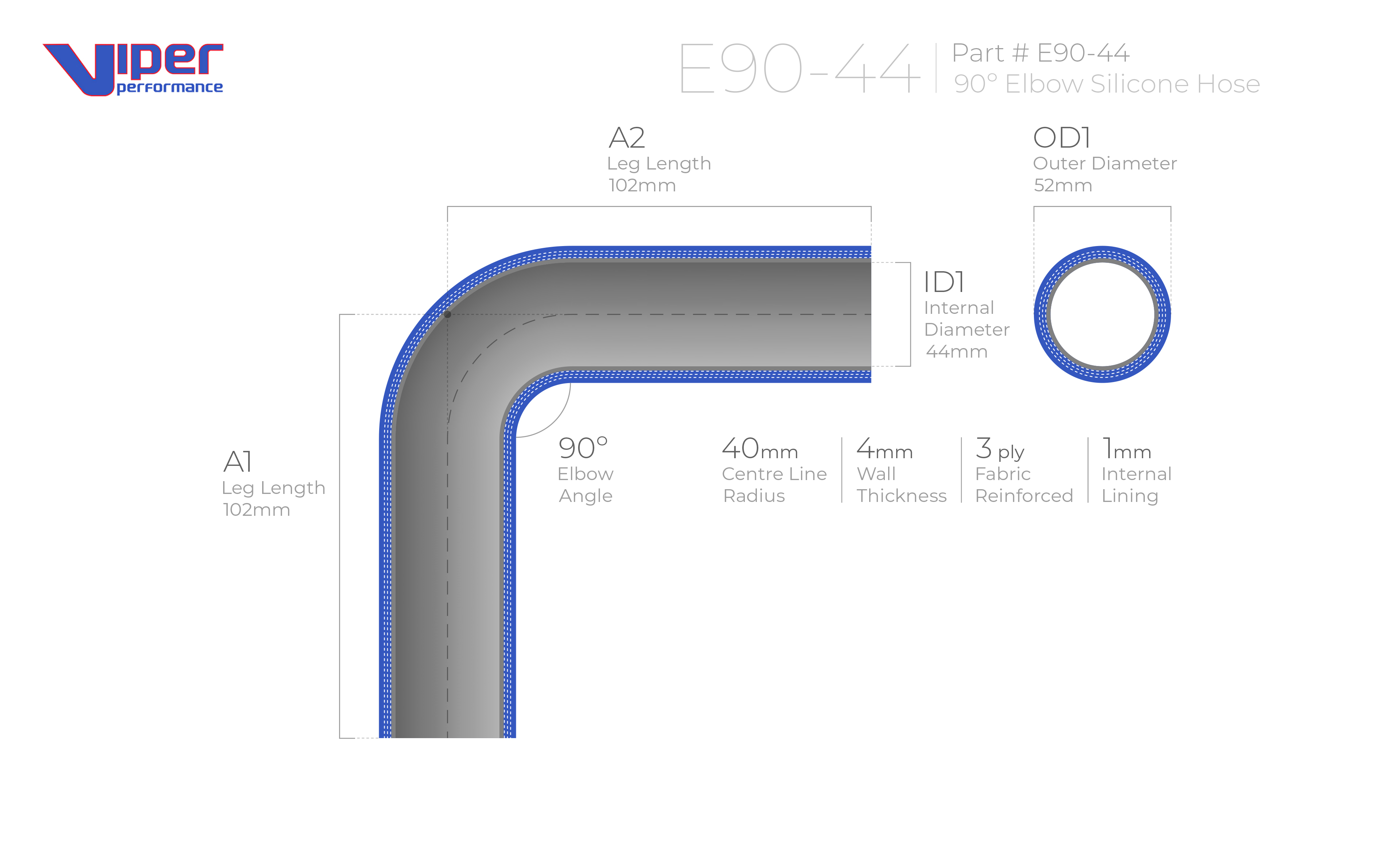

Technical Specification | |
---|---|
Leg Length - A1 | 102mm |
Internal Diameter - ID1 | 44mm |
Centre Line Radius - R | 40mm |
Plies of Reinforcement | 3 PLY |
Wall Thickness | 4mm |
